LOTOS 3D Measuring Systems

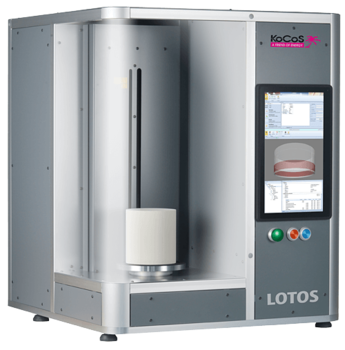

LOTOS automatic measuring systems can measure the full outer and inner contours or individual areas of any measurement object quickly and precisely, irrespective of the shape, and test them for defects. The three-dimensional, non-contact measurement is carried out using optical measurement sensors with accuracy in the μm range.
LOTOS 3d measurement and inspection systems can be equipped with various measuring sensors and actuators to achieve the highest measuring rates in the second cycle up to the highest measuring accuracy in the sub-micrometer range. Measuring speeds from 4 seconds per component with measuring ranges from 0mm to 750mm configurable for a wide range of test part dimensions.

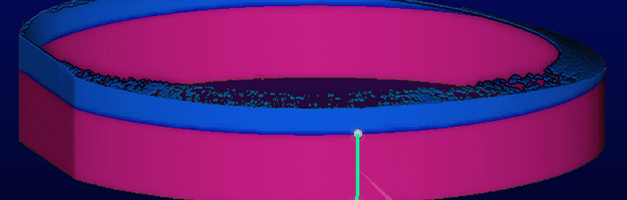

Result: A representation of the measurement object as a 3D model. Powerful, intuitive software allows the measurement results to be assessed extremely quickly.
Get your free demo and free feasibility studies for your measuring task!
The inspection systems of the LOTOS product range have been specially developed to perform various 3D measurements and inspections. Here you can find application reports and application experiences.
Can be equipped with various measuring sensors and actuators to achieve:
Highest measuring rates at second intervals up to highest measuring accuracy in the sub-micrometer range. Measuring rates from 4 seconds per part with measuring ranges from 0 mm to 400 mm can be configured for a wide range of part dimensions.
LOTOS automatic measuring systems are used for the precise determination of geometries at any measuring objects, irrespective of their shape. The measurement is performed by moving optical sensors along the outer contours of the measuring objects. Due to the extremely high sampling rate, both two- and three-dimensional measurements including the evaluation of the results are possible in the shortest time.
With IIoT (Industrial Internet of Things) capability, integration into state-of-the-art data and control environments becomes seamless, meeting all Industry 4.0 requirements.
The powerful software offers a wide range of options for quality assurance, production monitoring and control, as well as technological preparation of new manufacturing processes.

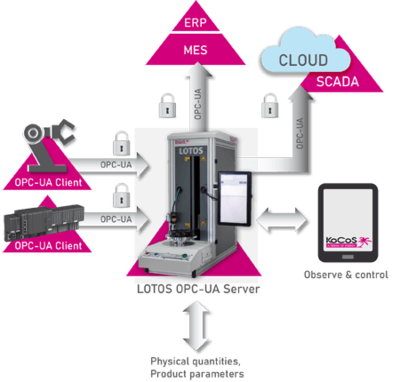

LOTOS measuring systems as OPC-UA server
The central challenges of Industry 4.0 or the Industrial Internet of Things (IIoT) are security and a standardized exchange of data and information between machines, devices and services from a wide range of industries. LOTOS measuring systems as OPC-UA servers help to meet the high demands on industrial networks and to implement a standardized, secure exchange of information.

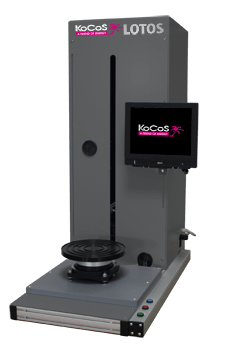

The test object is rotated on a turntable for scanning, while the optical sensors are moved along the test object by means of a vertical precision measuring axis. The geometry can then be checked fully automatically for predefined properties. Due to the wide range of possible uses, there are applications for in-process testing and for quality inspection in almost all industries.
Thanks to flexible part fixtures and the high variability of measuring ranges, the systems enable the measurement of smallest parts up to heavy machine components. Whether required for tasks connected with development and optimization, or for in-process testing and process control, a wide variety of measuring tasks can be carried out flexibly and efficiently with just one LOTOS measuring system.
Whether used in the measuring room or in harsh manufacturing environments, the robust design of LOTOS measuring systems guarantees a long service life, while maintenance-free components from leading manufacturers ensure high reliability. The entire mechanics and sensor technology is dust-protected and designed to compensate for environmental influences. In addition, self-monitoring functions provide high operational reliability and accuracy even under fluctuating environmental conditions.
The comprehensive software package makes these measuring and test systems suitable for use in the areas of development and application, as well as for 100% in-line testing. All LOTOS models are futureproof and feature interfaces for stand-alone use, or for partially or fully automatic operation within the production environment. As a result, the measuring systems are well equipped to meet upcoming Industry 4.0 requirements.
Shape and position tolerances according to ISO 1101 for the entire test object, freely definable sections or individual areas can be measured:
Shape and position testing
Identification of imperfection Geometric measurements
