ARTES - Automatic Relay Test System!

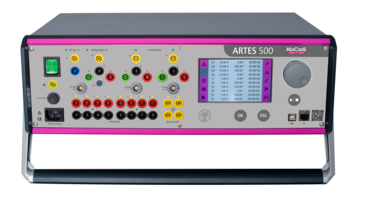

Compact, powerful relay test systems for carrying out highly complex tests with ease and precision. The test systems of the ARTES product line are used to carry out functional tests on all types of protection devices, including DT/IDMT relays, distance protection relays and differential protection relays, to ensure that they function correctly.
More than 25 years of experience in developing and manufacturing automatic relay test systems have gone into creating the fourth generation of ARTES test instruments.
All ARTES test systems provide excellent ergonomics, functionality and performance and fulfil the high expectations of customers worldwide. In-house development and manufacturing guarantee excellent quality „Made in Germany“.
The complete ARTES 5 testing software, including all test monitors, is included in the standard scope of delivery of ARTES test systems. The test values for different types of faults are calculated automatically and can be combined to complete test sequences.
Database structure
The central element of the testing software is the integrated database. The structural design enables the management of all necessary information and results in one central place. The sorting of the data can be done by a user-specific folder structure or by the virtual representation of entire plants.
Test monitors

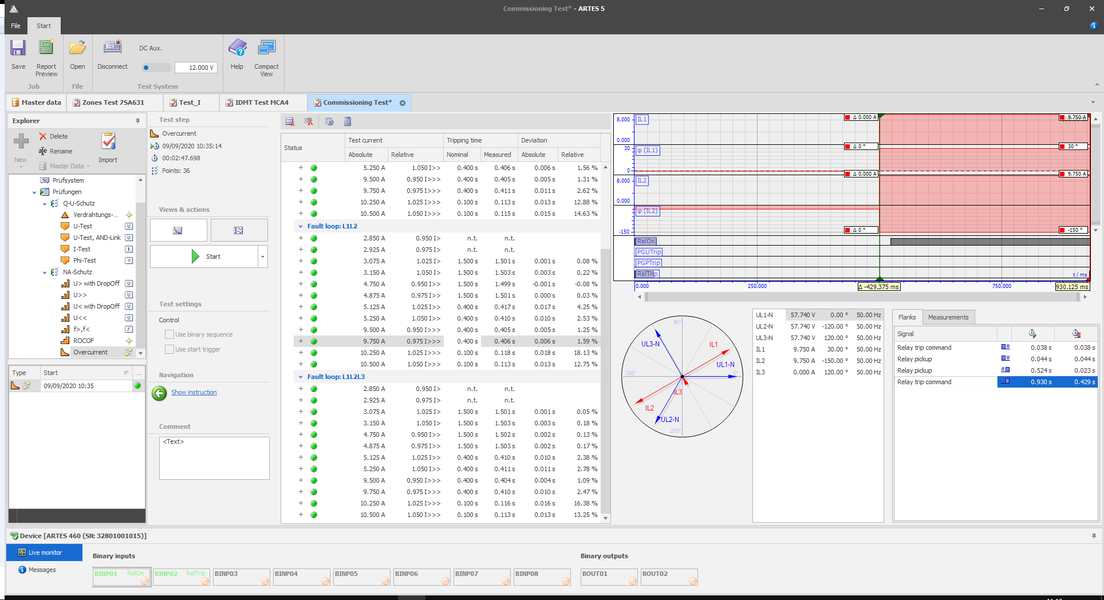

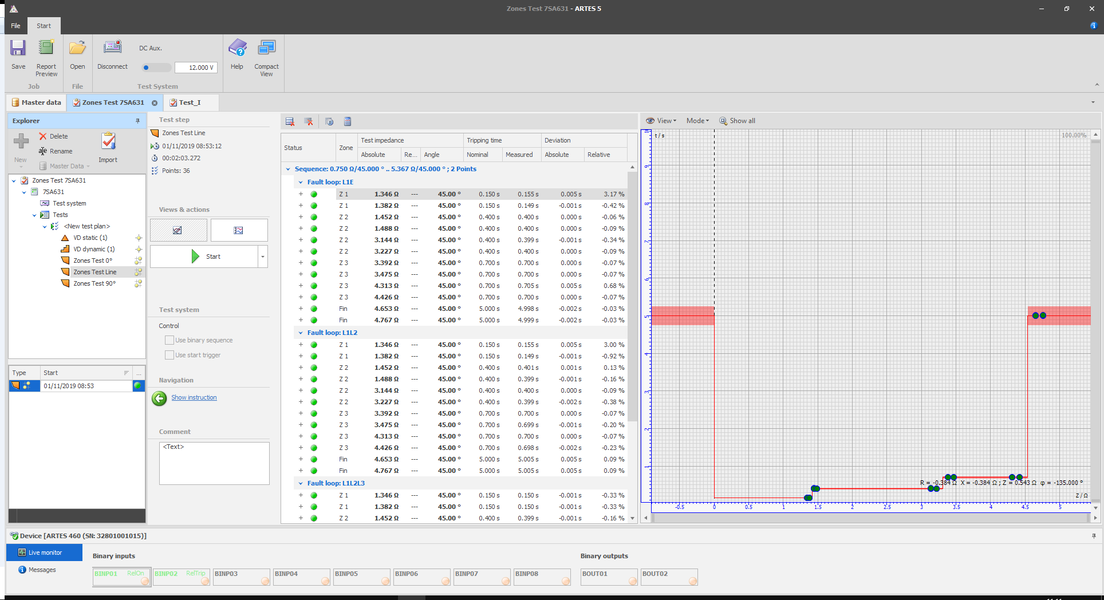

The ARTES 5 testing software contains specially adapted test monitors for testing different protection functions. These calculate the required test values according to the globally defined protection settings.
Individual test plans
An individual test plan can be created easily for each device under test. Individual tests can be combined to form complete device or type tests.
Automatic generation of test reports
For documentation and, if necessary, submission for certification, the test results can be automatically compiled into a test report. The content of this report can be defined by selecting the available test results.
The solution for importing relay settings
With ACI Codec, KoCoS provides a unique data import interface. Files with specific settings of protection relays can be read in directly with an ACI codec. And in a way that users want: without manual entries or adjustments of the parameters.
Applicable for all data formats
A decisive advantage over other methods is that no special data format is required. The relay manufacturers therefore do not have to provide any special functions for data saving in their software. An ACI codec can be created for almost any readable format.
Read settings directly from the relay
And not only files can be imported. Communication routines can also be integrated in the codec. With this, the settings can be read out directly from the relay. One mouse click is all it takes to start the test.
Codecs can be created for all relays
You don’t have to be an absolute expert to create a codec. Basic knowledge of programming is required, but the structure of a codec is generated automatically by ARTES. This must be filled with the appropriate linkages.
How to do this and more information about the ACI codec can be found in the blog post: No worries about Codecs! and the Video: ACI Codec - Practical Check.
