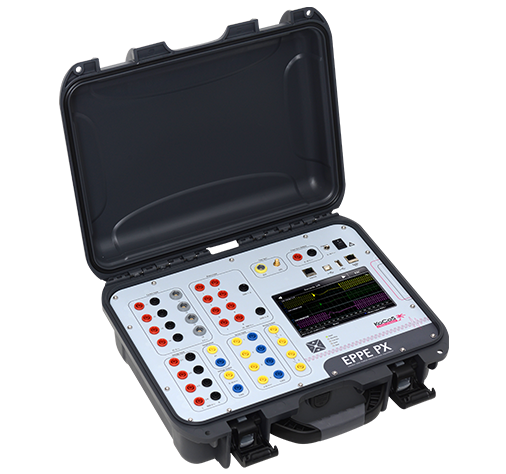

EPPE PX has been specially developed for mobile measurements and installation monitoring. Sensor inputs, direct inputs for current measurement and galvanically isolated voltage inputs make the device extremely flexible to use and allow individual adaptation to the needs and requirements of the user. The rugged carrying case protects the measuring device even in harsh environmental conditions.
Measurement inputs for 4 voltages, 4 currents, 4 current clamps, 8 digital inputs as well as 5 additional sensor inputs and an analog control output make the device extremely flexible to use.

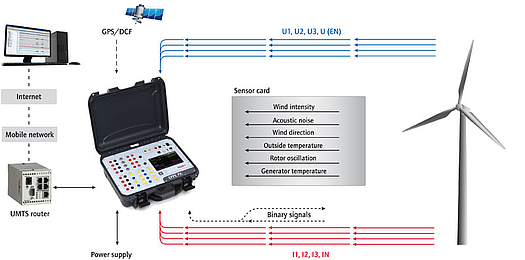

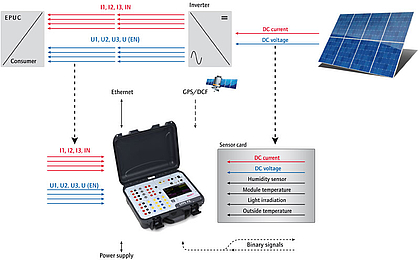

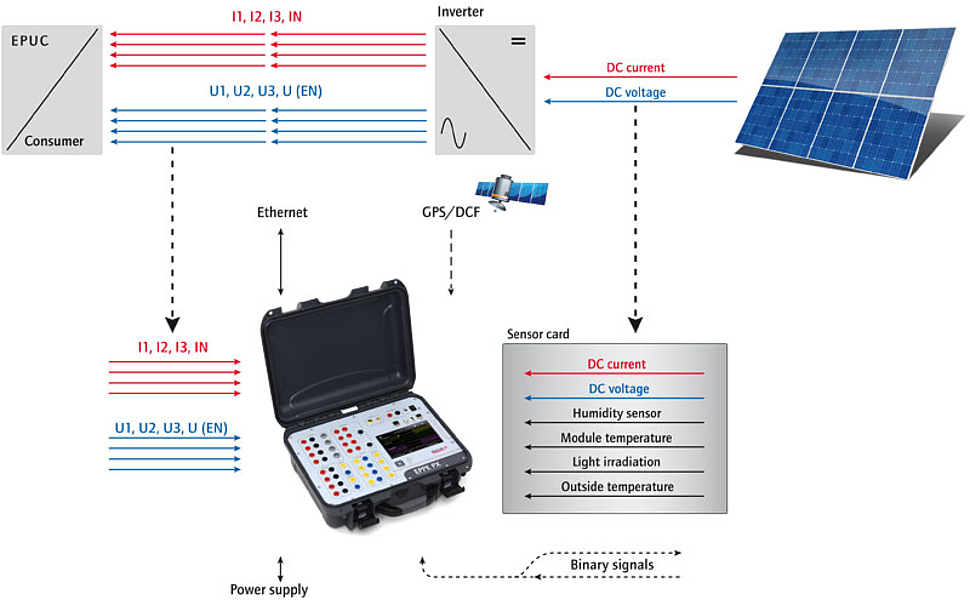

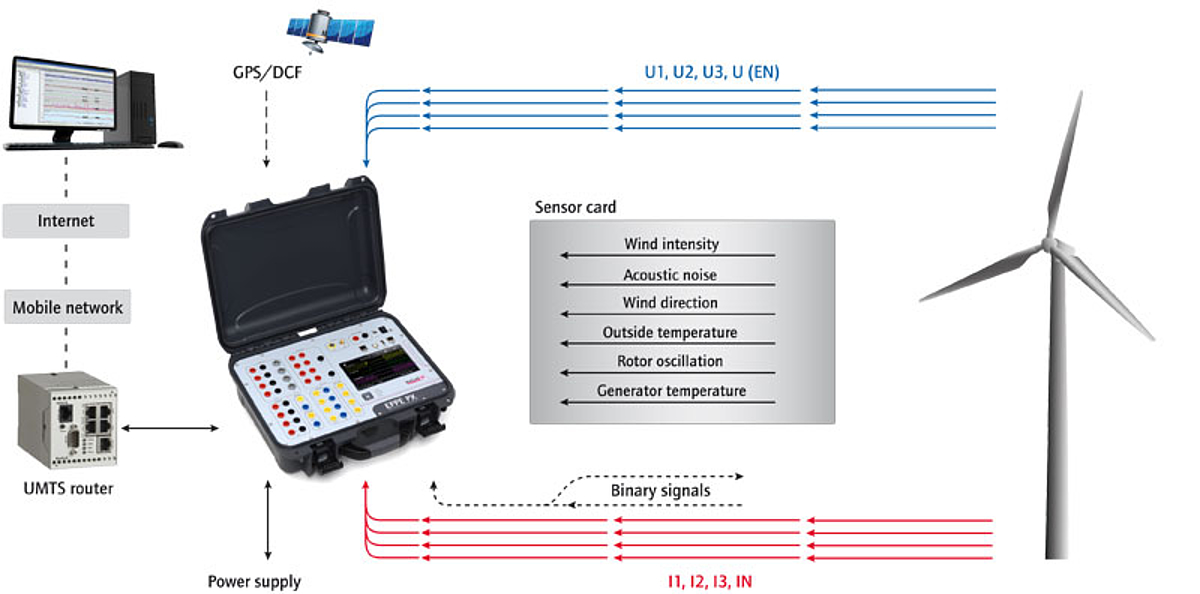

Examples of applications
| Display | 5 status LEDs |
| Operation | EPPE operating software for Windows 7, 8.1, 10 (32 and 64 bit) |
| Memory | 4 GB flash RAM for measurement data; 512 MB flash RAM for firmware |
| Interfaces | 1 x 10/100 Mbit Ethernet (RJ 45), 1 x USB-A, 1 x USB-B |
| Supply voltage | 100…240 VAC (100…350 VDC), 47…63 Hz |
| Analog inputs | 4 x voltage up to 600 VAC/±848 VDC, 4 x current up to 32 AAC, Sampling rate 200 kHz |
| Binary inputs | 8 (2 groups with separate reference points) |
| Binary outputs | 2 x Potential-free relay contact as NO contact |
| Standards | EN 61010-1, EN 61000-6-4, EN 61000-6-2, IEC 61000-4-30 class A, IEC 61000-4-7 harmonics and interharmonics, IEC 61000-4-15 flicker, EN 50160, IEEE 519, IEEE 1159 |
Optimize your energy quality with precise measurements, reliable software and the highest safety standards. Our solutions help you to identify sources of interference, reduce energy costs and ensure compliance with international standards - flexible, user-friendly and future-proof.
Stationary power quality monitoring system for panel mounting
Our EPPE CX is the ideal choice for fully automatic, permanent Power Quality and grid monitoring. Additionally, 16 digital inputs capture all reactions of the protection and switching devices involved, allowing grid faults and their entire chain of effects to be analyzed in a single recording. Live measurements and trends can be conveniently accessed in numerical or graphical form via the 5” touchscreen display. With its integrated alarm system, it informs you immediately in the event of irregularities.
The portable power quality solution in a carrying case
For users who require mobility, our EPPE PX offers the perfect solution. The robust case can withstand harsh environmental conditions. With additional sensor inputs, direct current inputs and full galvanically isolated analog inputs, it offers maximum flexibility for mobile measurements and system monitoring.
Compact power quality meter and fault recorder for DIN rail mounting
Our EPPE RX is a high-precision power quality and power measurement analyzer for DIN rail mounting. With 8 channels, it measures 4 voltages and 4 currents at a sampling rate of 200 kHz. Compliant with VDE-AR-N-4110 and VDE-AR-N-4120, it is ideal for monitoring EEG systems in the medium and high-voltage grid.
