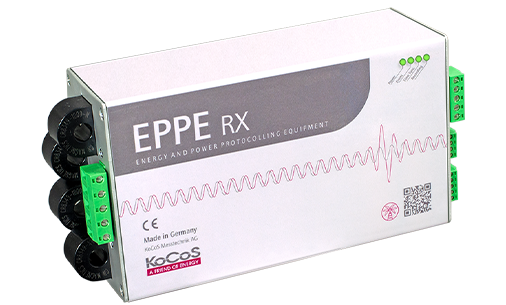

EPPE RX - Power Quality Analyzer and fault recorder for DIN rail mounting
The EPPE RX is a compact and powerful class A power quality analyzer that also serves as a power meter, power quality logger and fault recorder. With its 8-channel measuring function, it measures 4 voltages up to 1000 V (L-L) and 4 currents up to 10/100 A with a fast sampling rate of 200 kHz and an outstanding precision of 0.05%.
The current measurement is carried out via through-type transformers, which allow the device to be installed quickly and easily in existing circuits without additional terminal points.
Optimize your energy quality with precise measurements, reliable software and the highest safety standards. Our solutions help you to identify sources of interference, reduce energy costs and ensure compliance with international standards - flexible, user-friendly and future-proof.
The EPPE RX conforms to VDE-AR-N-4110 and VDE-AR-N-4120, which makes it ideal for monitoring and compliance monitoring of EEG systems in the medium and high-voltage grid.
| Display | 4 status LEDs |
| Operation | Web server, Operating software |
| Memory | 32 GB Flash |
| Synchronization | GPS, PPS, NTP/SNTP, IRIG-B, KoCoS Interlink |
| Interfaces | 1 x RS 232, 1 x RS 485, 1 x USB, 2 x Ethernet (RJ45) |
| Supply voltage | 85...265 VAC, 47...63 Hz 100...250 VDC, +6, -15% of nominal range |
| Analog inputs | 4 x voltage up to 600 V (L-N), 4 x current up to 50 A, Sampling rate 200 kHz |
| Binary inputs | 4 inputs |
| Binary outputs | 2 x relay changeover contacts |
| Design | Aluminum DIN-Rail housing, Protection class IP 20, Dimensions 220 x 110 x 80 mm |
| Standards | EN 50160, IEC 61000-4-7, IEC 61000-4-15, IEC 61000-4-30 Class A |
Stationary power quality monitoring system for panel mounting
Our EPPE CX is the ideal choice for fully automatic, permanent Power Quality and grid monitoring. Additionally, 16 digital inputs capture all reactions of the protection and switching devices involved, allowing grid faults and their entire chain of effects to be analyzed in a single recording. Live measurements and trends can be conveniently accessed in numerical or graphical form via the 5” touchscreen display. With its integrated alarm system, it informs you immediately in the event of irregularities.
The portable power quality solution in a carrying case
For users who require mobility, our EPPE PX offers the perfect solution. The robust case can withstand harsh environmental conditions. With additional sensor inputs, direct current inputs and full galvanically isolated analog inputs, it offers maximum flexibility for mobile measurements and system monitoring.
Compact power quality meter and fault recorder for DIN rail mounting
Our EPPE RX is a high-precision power quality and power measurement analyzer for DIN rail mounting. With 8 channels, it measures 4 voltages and 4 currents at a sampling rate of 200 kHz. Compliant with VDE-AR-N-4110 and VDE-AR-N-4120, it is ideal for monitoring EEG systems in the medium and high-voltage grid.
