ACTAS P260+ | P360+
Flexible and compact test systems for the testing of medium-, high- and extra-high voltage switchgear with a plus in control and performance.
Using the integrated control panel of ACTAS P260+ | P360+, it is possible to carry out and evaluate comprehensive switchgear tests quickly and easily and with a high degree of flexibility within a single test procedure:

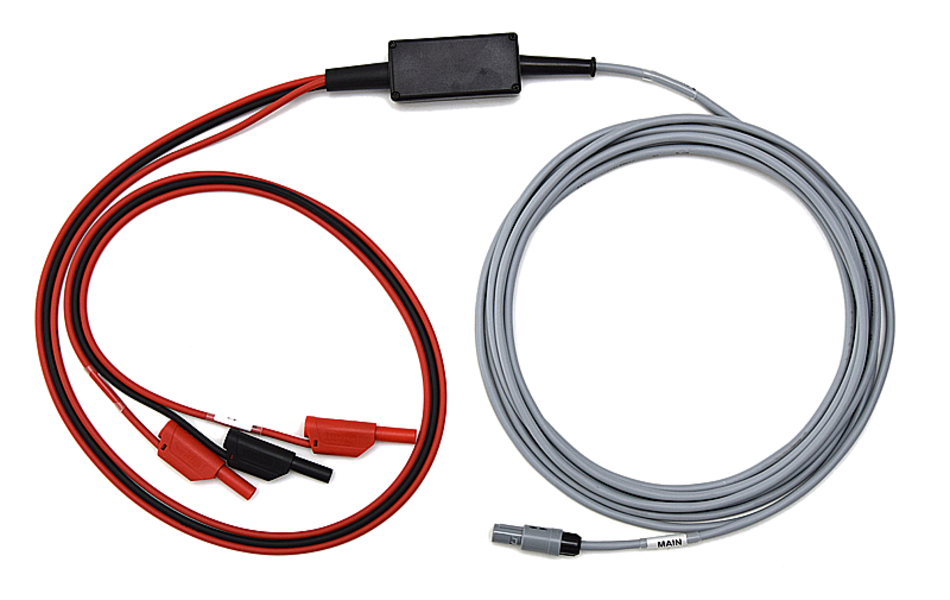

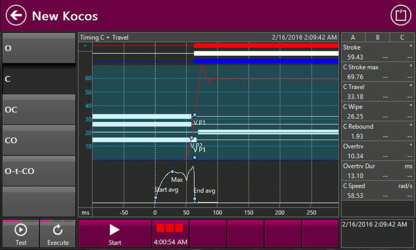

Determination of operating times for various switching sequences on up to 12 PIR and main contacts.

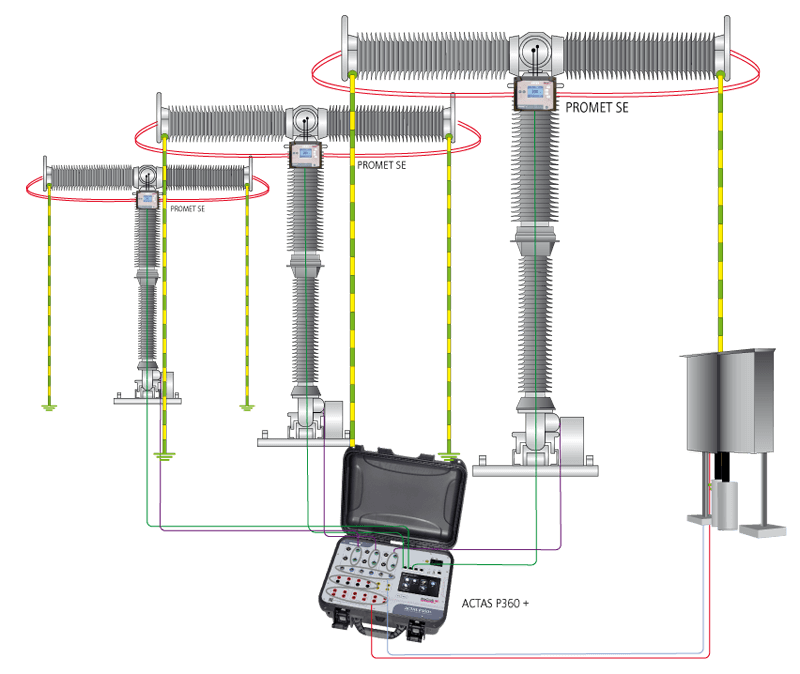

In combination with PROMET SE, simultaneous tests can be carried out on up to 3 poles, each of which has 4 main contact chambers, with earthing on both sides. More contact chambers are possible. In GIS systems, the operating times of the breaker units are measured via current pulses. For this purpose, Rogowski coils are attached to the insulated ground of the GIS system.

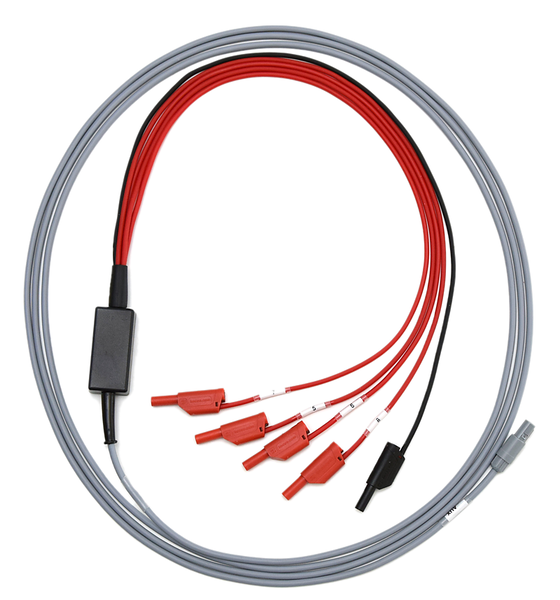

Status messages from up to 12 auxiliary contacts with integrated wet / dry switchover.
Up to 9 analogue / digital sensor inputs for pressure,
displacement, current and temperature measurement for analogue and incremental sensors. The sensor inputs can be flexibly parameterised according to requirements and used for special measurement procedures such as First Trip or measurement via VDS.

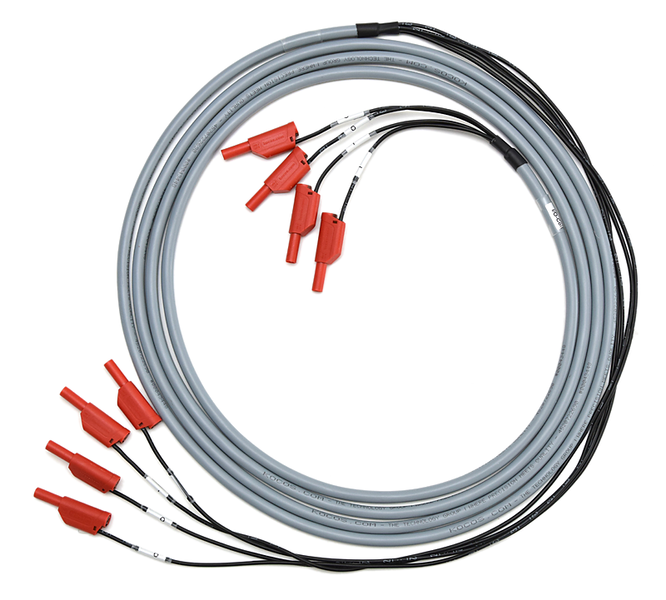

Coil current measurement on up to 3 closing and 3 opening coils. Freely selectable measuring ranges make it possible to obtain extremely precise measurement results.
Up to 2 relay outputs for actuator control

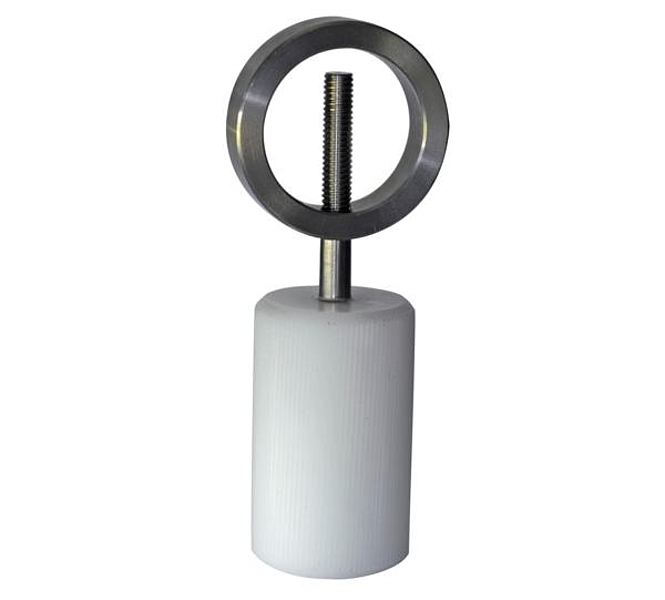

The determination of both static and dynamic contact resistance can be carried out simultaneously on 3 poles in combination with the various PROMET resistance measuring devices. Depending on the PROMET system, measurements on one or more contact chambers per pole and switch can be tested simultaneously.

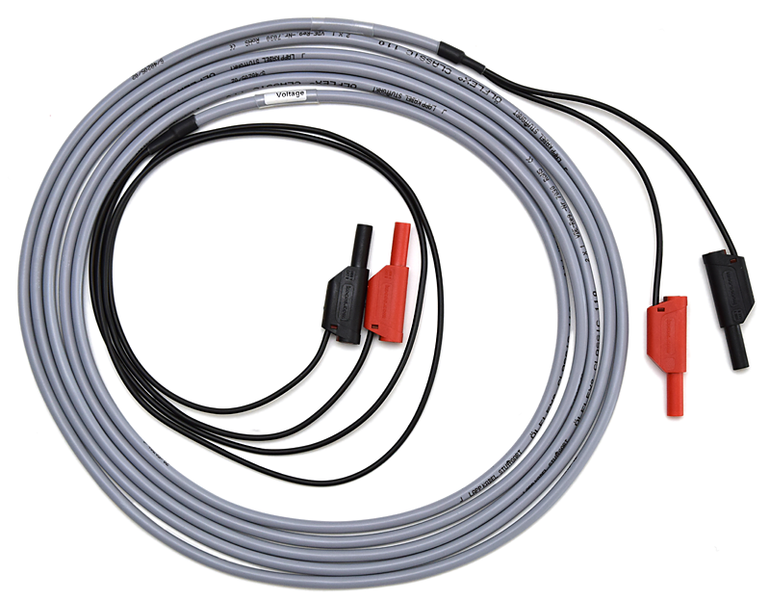

To be able to test motors and coils independently of the station voltage, the supply voltage can be provided by the powerful AC / DC source EPOS or other supported source types. Tests of, for example, the undervoltage releases and the minimum release voltage of coils can thus be carried out reproducibly under always the same conditions
The KoCoS system solution with ACTAS, PROMET, EPOS offers clear advantages due to its wide range of functions and high flexibility:
ACTAS P360+ makes it possible to measure the operating times of a medium-voltage system encapsulated in SF6 gas in the simplest way via the capacitive measuring points of the switch‘s own VDS system. The connection is made directly to the measuring inputs of the ACTAS test system without any further measuring components.
Due to the diverse connection options for sensors, first trip measurements can also be carried out with ACTAS. Up to five current clamps are connected to the secondary side of the current transformers and to the coils for this purpose. Using external trigger signals, the ACTAS test system can fully automatically determine the switching time during the first switching operation.

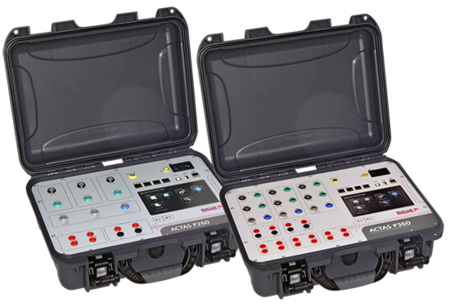

ACTAS P260+ | P360+ feature a compact and robust design in a handy hard case. The use of proven hardware components guarantees reliable operation during on-site testing of medium, high and extra-high voltage switchgear as well as disconnectors and earthing switches.

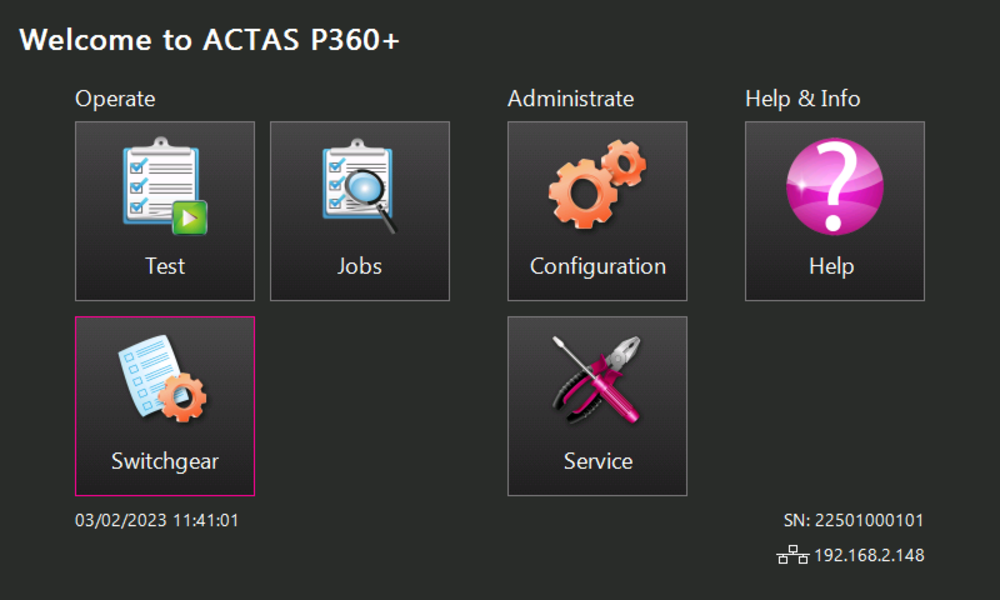

A further optimized, easy-to-understand operating concept and even more powerful hardware ensure simple operation with optimum display of all information. The clearly structured user interface is self-explanatory and leads the user intuitively and quickly to the goal without extensive training.
The parameterization of tests and the analysis of test results can be carried out on site directly on the device or also in the office via a PC and the ACTAS test software. The test data and parameters can be imported or exported at any time, e.g. via USB flash drive or network connection.
The ACTAS BTT 2.0 is a high-precision, mains-independent hand-held measuring device with which switching times, contact synchronization, sequence times and coil currents can be measured particularly quickly and easily.
