Rotary transducers

Rotary transducers can be used to precisely measure the rotary movement of the operating and drive shafts of a switchgear device. They are delivered as a set, complete with all the components required to fix the travel transducer to the switchgear device and connect it to ACTAS P x60 test instruments. The scope of delivery also includes a robust plastic case with rigid foam insert for practical storage and safe transport.

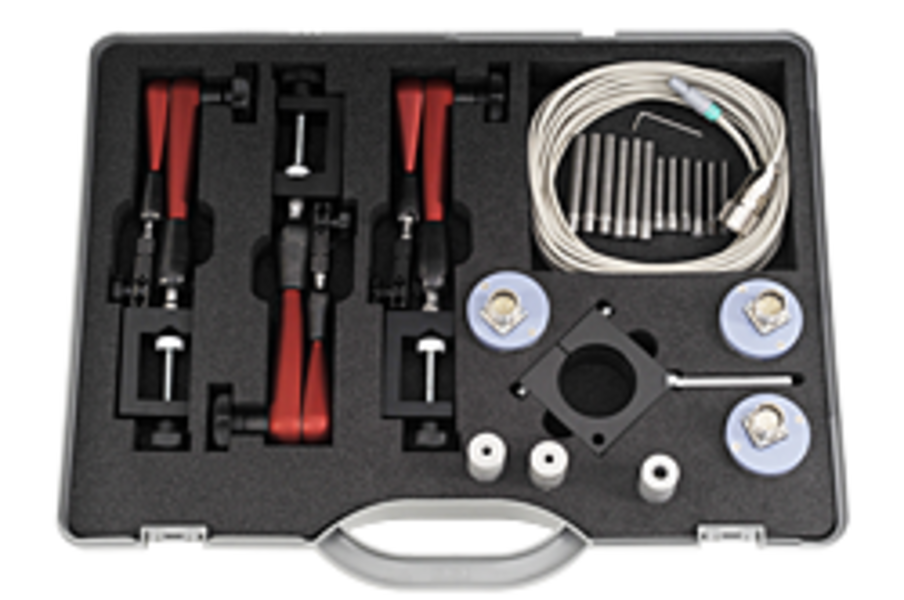

A rotary transducer set contains the following components:

1. Rotary transducer
2. Articulated stand with base clamp and fine adjustment
3. Coupling
4. Transducer holder
5. Adapter set to thread sizes M6, M8, M10, M12
6. Connection cable
7. Carrying case for rotary transducer set

Three-phase transducer sets contain 3 of each component.

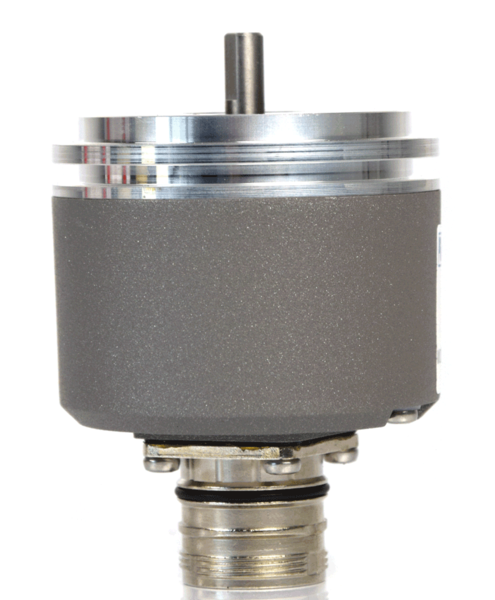

Digital rotary transducer set WDGI 58A

1. Digital rotary transducer
2. 3600 pulses per revolution
3. Aluminium housing, 58 mm
4. Stainless steel shaft, 6 mm, L 37 mm

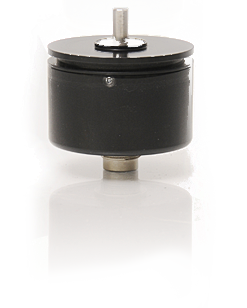

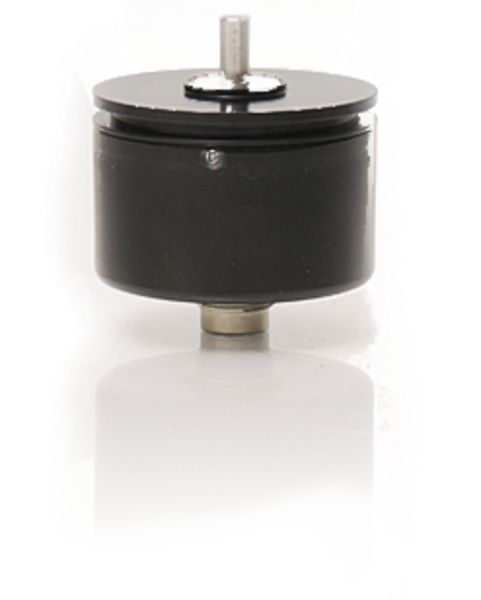

Analog rotary transducer set IP 6501

1. Rotary potentiometer transducer
2. 360° mechanically continuous
3. Electrical range 355° ±2°
4. Aluminium housing, 55 mm
5. Stainless steel shaft, 6 mm, L 37 mm
